Description
Conference Camera

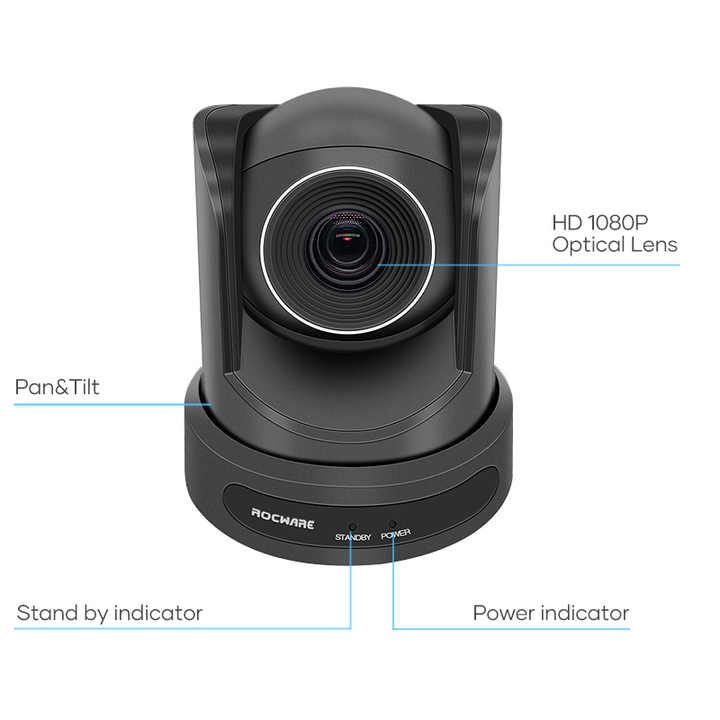

The ROCWARE RC20 is a professional-grade PTZ (Pan-Tilt-Zoom) conference camera designed to deliver high-quality video for various applications, including video conferencing, live streaming, education, and events. With its advanced features and versatile functionality, the RC20 aims to provide clear and dynamic visuals in diverse environments
Camera Specifications
-
Image Sensor: Equipped with a 1/2.7″ CMOS sensor offering 2.07 million effective pixels, the RC20 captures Full HD 1080p video at up to 60 frames per second.
-
Lens and Zoom: The camera features a 10x optical zoom lens with a focal length range of f=4.7mm to 46.3mm, providing a wide horizontal field of view from 58.5° down to 6.5°. Additionally, it offers a 16x digital zoom for detailed close-ups.
-
Low-Light Performance: The RC20 operates effectively in low-light conditions, with a minimum illumination of 0.5 lux at f/1.8. This capability ensures clear video even in dimly lit environments.
Pan-Tilt-Zoom (PTZ) Capabilities
-
Pan and Tilt Range: The camera offers a wide pan range of ±170° and a tilt range from -30° to +90°, allowing for comprehensive coverage of the room. Pan and Tilt Speeds: With pan speeds ranging from 2.7° to 47° per second and tilt speeds from 3.4° to 30° per second, the RC20 provides smooth and responsive camera movements.
-
Preset Positions: Users can store up to 255 preset positions, enabling quick and precise camera positioning during live sessions.
🔌 Connectivity and Power Options
-
USB Interface: The RC20 connects via USB 2.0, compatible with Windows, macOS, Linux, and Android operating systems. It supports UVC 1.0 for plug-and-play functionality without the need for additional drivers.
-
Power Supply: The camera can be powered through a 12V DC input or via USB, providing flexibility in various installation scenarios
-
Control Interfaces: Control options include an IR remote control and an RS-232 serial port for integration with external control systems.
Additional Features
-
Autofocus: The RC20 maintains fast and accurate autofocus during zooming, ensuring sharp images without the need for manual adjustments.
-
Noise Reduction: Advanced 2D and 3D digital noise reduction algorithms enhance image clarity, even in challenging lighting conditions.
-
White Balance: The camera supports multiple white balance presets, including Auto, Indoor, Outdoor, and Manual settings, to adapt to different lighting environments.
Package Contents
-
Included Items: The RC20 package contains the camera unit, an IR remote control, a power adapter with various plugs, and a USB cable with an additional power-over-USB connection.
Final Thoughts
The ROCWARE RC20 PTZ camera offers a comprehensive set of features suitable for professional video applications. Its high-resolution imaging, extensive PTZ capabilities, and flexible connectivity options make it a valuable tool for enhancing virtual communication experiences. Whether for corporate meetings, educational sessions, or live events, the RC20 aims to deliver reliable and high-quality video performance.
Specifications of Camera
- Video Resolution 1080P, 720P, 540P, 480P, 360P, 240P
- Sensor 1/2.8”, CMOS, 2.07 Megapixels
- Scanning Mode Progressive
- Lens 10x, f4.7mm ~ 46.3mm, F1.8 ~ F2.8
- Digital Zoom 16x
- Minimal Illumination 0.5Lux @ (F1.8, AGC ON)
- Shutter 1/30s ~ 1/10000s
- White Balance Auto, Indoor, Outdoor, One Push, Manual,
Adjustable color temperature - Backlight Compensation Support
- Digital Noise Reduction 2D&3D Digital Noise Reduction
- Video S/N ≥55dB
- Horizontal Angle of View 58.5° ~ 6.5°
- Vertical Angle of View 35.1° ~ 3.6°
- Horizontal Rotation Range ±170°
- Vertical Rotation Range -30° ~ +90°
- Pan Speed Range 2.7° ~ 47°/s
- Tilt Speed Range 3.4° ~ 30°/s
- H & V Flip Support
- Number of Preset 255
- Preset Accuracy 0.1°
